	Steering Shaft Assembly

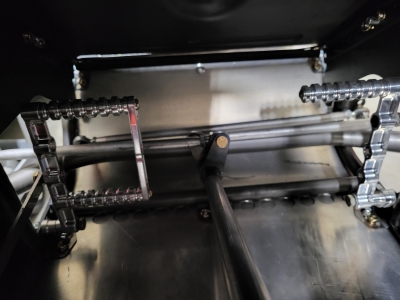

	Steering shaft flags should be centered evenly. AN washer and hi-collar locking washer between rod end and flag.
	Right Front Assembly
	Rods and shock on outer side of axle brackets. Hi-collar locking washer between shock rod end and axle bracket.
	Left Front Assembly

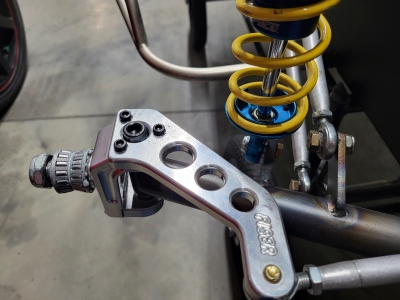

	Axle bracket, shock, then rod. AN washer under head of bolt, hi-collar locking washer between bracket and shock rod end.
	Right Side Rear Axle
	Left Side Rear Axle

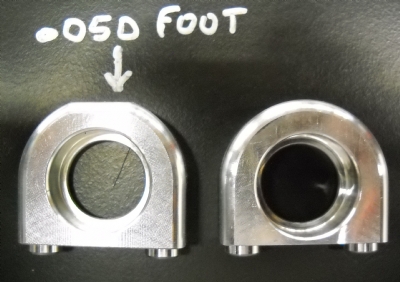

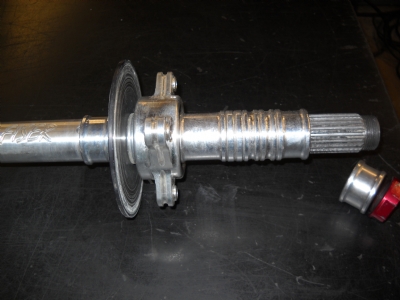

	Spindle Foot/Bottom Mount
	Left Front Shock/Radius Rod Configuration

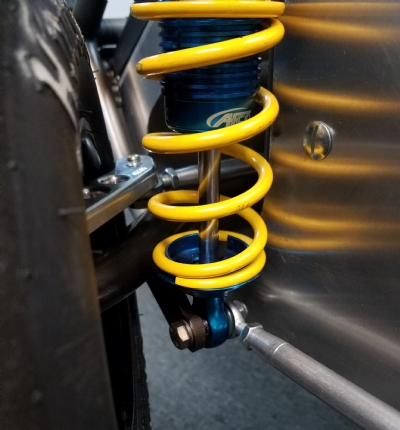

	High collar locking washer between AFCO shock and Bracket

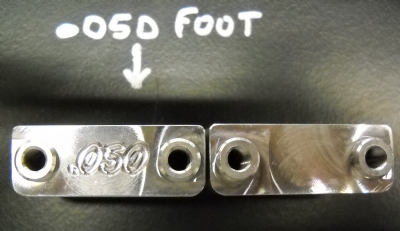

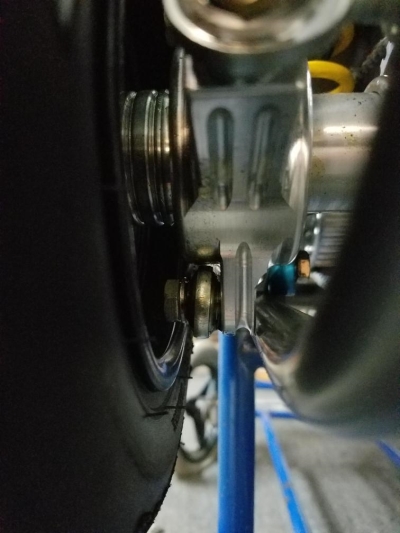

	Spindle Foot/Bottom Mount

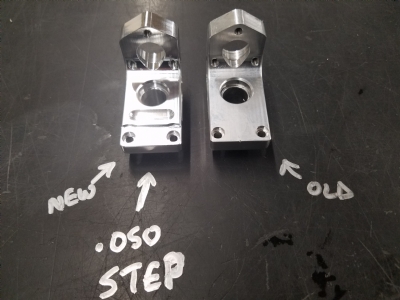

	Old VS. New Spindle

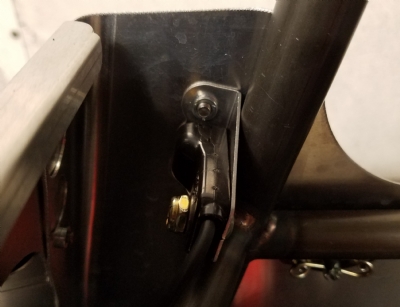

	Mychron Eye Bracket
	What Car (year ) do you have?

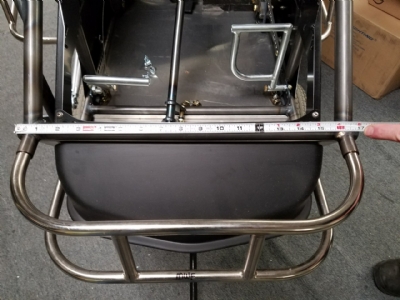

	Length of open tube end to end. The car pictured is a new car with a 17"open tube. All cars 2000 series and newer, anything shorter is an older car.(older than 2000) Please call if you have questions.

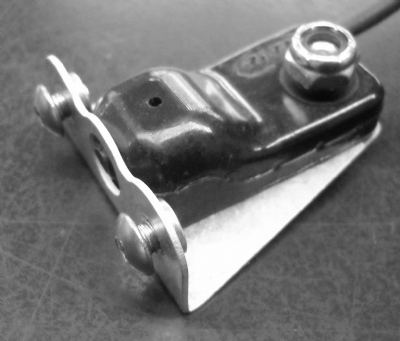

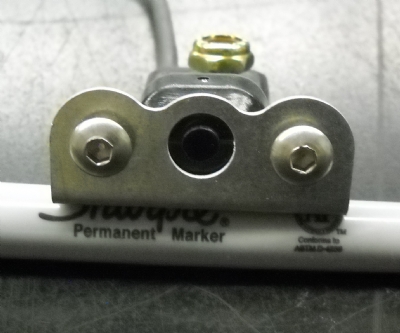

	Mychron Eye Bracket

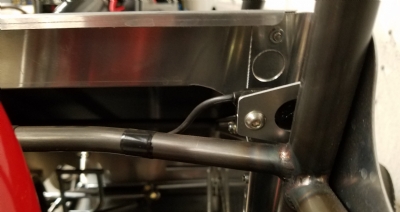

	Mychron Eye Bracket in Car
	Mychron Eye Bracket in Car other angle
	How To Measure Motor Plate
